ELEMENT LED PANELS

PRECISION IN EVERY PIXEL

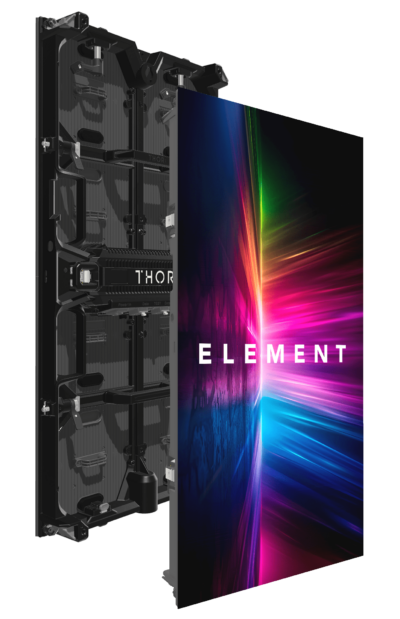

ELEMENT LED WALL PANELS

Introducing ELEMENT — the latest evolution in THOR’s lineup of premium LED displays. With an advanced pixel design, it delivers deeper blacks, an expanded color gamut, and stunning accuracy on camera and on stage. Fully calibrated with Brompton and Novastar, ELEMENT ensures lifelike visual displays with smooth curves and striking angles. Engineered for performance, the toolless design and effortless rigging system are ideal for live events. This isn’t just another LED display — it’s a testament to innovation, reliability, and creative freedom. With ELEMENT, your vision isn’t just displayed — it’s elevated.

  • 2.6mm and 3.1mm pixel pitches
  • Brompton or Novastar processor options
  • 500mm x 500mm or 500mm x 1000mm cabinet options
  • Camera Optimized
  • Toolless Design
  • Up to 240Hz Frame Rate
  • Enhanced Low Brightness
  • Curveable chassis

ELEMENT LED WALL PANELS

Introducing ELEMENT — the latest evolution in THOR’s lineup of premium LED displays. With an advanced pixel design, it delivers deeper blacks, an expanded color gamut, and stunning accuracy on camera and on stage. Fully calibrated with Brompton and Novastar, ELEMENT ensures lifelike visual displays with smooth curves and striking angles. Engineered for performance, the toolless design and effortless rigging system are ideal for live events. This isn’t just another LED display — it’s a testament to innovation, reliability, and creative freedom. With ELEMENT, your vision isn’t just displayed — it’s elevated.

  • 2.6mm and 3.1mm pixel pitches
  • Brompton or Novastar processor options
  • 500mm x 500mm or 500mm x 1000mm cabinet options
  • Camera Optimized
  • Toolless Design
  • Up to 240Hz Frame Rate
  • Enhanced Low Brightness
  • Curveable chassis

ELEMENT 2.6 and 3.1

2.6mm and 3.1mm

LIVE EVENTS
Ideal for stage design creativity, broadcast, corporate events, tradeshows and more.

RENTAL
Lightweight panels with tool-less install and maintenance for quick setup and design flexibility.

STUDIO PRODUCTION
Outstanding color depth and hue that interact perfectly with studio cameras.

IMAG
Ideal for viewing on-stage talent with visual clarity, especially in larger venues.

LIVE EVENT

RENTAL

VIRTUAL PRODUCTION

IDEAL MARKETS

LIVE EVENT

RENTAL

VIRTUAL PRODUCTION

ELEMENT LED PANEL SPECIFICATIONS

ELEMENT 2.6
500 x 500		 ELEMENT 2.6
500 x 1000
 ELEMENT 3.1
500 x 500
 ELEMENT 3.1
500 x 1000
Pixel Pitch 2.6mm 2.6mm 3.1mm 3.1mm
Receiving Card Brompton R2
Novastar A10S-Pro		 Brompton R2
Novastar A10S-Pro		 Brompton R2
Novastar A10S-Pro		 Brompton R2
Novastar A10S-Pro
Calibrated Brightness 1,100 nits 1,100 nits 1,000 nits 1,000 nits
Closest Viewer 10 FT / 3M 10 FT / 3M 11.5 FT / 3.5M 11.5 FT / 3.5M
Driving Method 1/16 scan 1/16 scan 1/16 scan 1/16 scan
Gray Scale 16 bit 16 bit 16 bit 16 bit
Pixel Configuration per Panel 192×192 192×384 160×160 160×320
Viewing Angle 160º x 140º
LED Module SMD 1515 SMD 1515 SMD 1515 SMD 1515
LED Driver IC MBI IC with S-PWM
Serviceability Front / Rear
Panel Dimensions 500mm x 500mm 500mm x 1000mm 500mm x 500mm 500mm x 1000mm
Hardware Options Fly & Ground Stack
Refresh Rate 7,680 Hz
Chassis Curvable at +/- 0°, 3°, 6° Standard
Curving Option 45º Chassis by Special Order
Operating Temperature 32° to 90° F
Operating Humidity 10% – 90%
Power Input 120/240 Volt at 50/60 Hz
Power Consumption 110W max. 75W avg. 225W max. 100W avg. 110W max. 75W avg. 225W max. 100W avg.
BTU/hr 375 max. 256 avg. 767 max. 342 avg. 375 max. 256 avg. 767 max. 342 avg.
Electrical Circuits 1x 20A 120V circuit
per 17 panels		 1x 20A 120V circuit
per 8 panels		 1x 20A 120V circuit
per 17 panels		 1x 20A 120V circuit
per 8 panels
Flown Maximum Rigging Height 12M (39.37′) 20M (65.62′) 12M (39.37′) 20M (65.62′)
Ground Stacked Maximum Height 4.5M (14′)
Chassis Material Die Cast Magnesium
Weight 8.1 kg (18 lbs) 11.9 kg (26 lbs) 8.1 kg (18 lbs) 11.9 kg (26 lbs)
IP Rating IP31
Certifications FCC, ETL, CE
LED Life Span 75,000+ hours
Limited Warranty 3 years

ELEMENT LED PANEL SPECIFICATIONS

ELEMENT 2.6
500 x 500		 ELEMENT 2.6
500 x 1000
 ELEMENT 3.1
500 x 500
 ELEMENT 3.1
500 x 1000
Pixel Pitch 2.6mm 2.6mm 3.1mm 3.1mm
Receiving Card Brompton R2
Novastar A10S-Pro		 Brompton R2
Novastar A10S-Pro		 Brompton R2
Novastar A10S-Pro		 Brompton R2
Novastar A10S-Pro
Calibrated Brightness 1,100 nits 1,100 nits 1,000 nits 1,000 nits
Closest Viewer 10 FT / 3M 10 FT / 3M 11.5 FT / 3.5M 11.5 FT / 3.5M
Driving Method 1/16 scan 1/16 scan 1/16 scan 1/16 scan
Gray Scale 16 bit 16 bit 16 bit 16 bit
Pixel Configuration per Panel 192×192 192×384 160×160 160×320
Viewing Angle 160º x 140º
LED Module SMD 1515 SMD 1515 SMD 1515 SMD 1515
LED Driver IC MBI IC with S-PWM
Serviceability Front / Rear
Panel Dimensions 500mm x 500mm 500mm x 1000mm 500mm x 500mm 500mm x 1000mm
Hardware Options Fly & Ground Stack
Refresh Rate 7,680 Hz
Chassis Curvable at +/- 0°, 3°, 6° Standard
Curving Option 45º Chassis by Special Order
Operating Temperature 32° to 90° F
Operating Humidity 10% – 90%
Power Input 120/240 Volt at 50/60 Hz
Power Consumption 110W max. 75W avg. 225W max. 100W avg. 110W max. 75W avg. 225W max. 100W avg.
BTU/hr 375 max. 256 avg. 767 max. 342 avg. 375 max. 256 avg. 767 max. 342 avg.
Electrical Circuits 1x 20A 120V circuit
per 17 panels		 1x 20A 120V circuit
per 8 panels		 1x 20A 120V circuit
per 17 panels		 1x 20A 120V circuit
per 8 panels
Flown Maximum Rigging Height 12M (39.37′) 20M (65.62′) 12M (39.37′) 20M (65.62′)
Ground Stacked Maximum Height 4.5M (14′)
Chassis Material Die Cast Magnesium
Weight 8.1 kg (18 lbs) 11.9 kg (26 lbs) 8.1 kg (18 lbs) 11.9 kg (26 lbs)
IP Rating IP31
Certifications FCC, ETL, CE
LED Life Span 75,000+ hours
Limited Warranty 3 years

MORE INFORMATION & DOWNLOADS

SUPPORT

ELEMENT LED WALL PANEL DOWNLOADS

FAQS

ELEMENT LED WALL PANEL FAQs

What type of LED panel is best for my venue? LED panel selection is based more on the application than the physical venue. The physical venue determines more of the size and where you could install the LED display. View “Why does the distance between pixels matter?” to see more on choosing the right display.
Straight or curved LED wall? In most venues, straight panels are the option of choice. A curved option provides ample design creativity.
Why does the distance between pixels matter? The closer the pixels are to each other, the close your viewers can be to the display. Other reasons may include the integration of cameras, the visual perceptions of the audience, and other factors. Talk to your AVL integrator to make a more informed selection.
What is a module? Each panel has several modules. A module consists of pixels, a mask to increase contrast and black levels, and the circuitry to connect to the hub board.
Low vs. high brightness performance? When the LED wall brightness control is turned down, the image is to stay in tact. The lower the brightness the less dynamic range you are allowing the panels to perform in. Resulting in the compression of the image. THOR is determined to provide the highest quality displays that excel in low brightness performance.
What’s a nit? Nits are a measurement of light emitted from a source.
Why does the IC driver matter so much? One of the goals of a video display is to provide a fluid and seamless image that removes “distraction” and creates a life-like experience. The IC driver (integrated circuit) has significant influence on this equation for engaging your audience.
What is the purpose of the mask on a module? The mask on the module helps establish black levels throughout, creating more pronounced contrast. It also protects the pixels and decreases the failure rate.
Why is structural engineering important when considering an LED wall? Safety for your audience is paramount and is an essential standard in the construction process. Work with your AVL integrator to set up an appointment with a structural engineer to determine what your structural rigidity and capabilities are for your venue.
What processor do I need? This is directly related to your current gear, video settings, the amount of panels, and the degree of color correction that may be needed when mixing batches of LEDs. Connect with your dealer to discuss further.
Why does the IP rating matter? The IP rating determines the acceptable level of air particles and moisture content that the product is designed to keep out.
Why do certifications matter? UL, FCC, ETL, and EMC certifications are standards that are directly connected to safety, RF interference, and manufacturing standards.
What is the warranty? THOR LED panels have a limited two year warranty.
What type of electrical circuits are needed and how many? 20 amp (110-240v) circuits are required in order to power the panels. Each product line is unique.

TROUBLESHOOTING

ELEMENT LED WALL PANEL TROUBLESHOOTING

What if a block of my panels aren’t working right? Try replacing a data cable. Usually between the last panel that is working and the first panel that has stopped working.
How do I flash the receiving card and why? Please contact your dealer for more information and instructional guides.
Is there a reason why power cables connect stage left to right? Yes. Power is not bi-directional.
Are the ELEMENT power data boxes “hot swappable”? Yes. The ELEMENT power data box contains the power supply, PCB, and receiving card for your video feed data. Unscrew the four thumb screws that hold the power data box onto the panel, pull it off, and replace.
My display has moiré issues. Wavy lines! Moiré is an image artifact that appears when two fine patterns overlap at an angle. One of the easiest ways to reduce the moiré effect is to soften its direct focus by focusing on something else, like an individual. Slightly soften the focus on the screen itself to reduce the on-camera moiré effect with LED screens.

Focus points matter when using cameras. Focusing on the LED wall creates moiré no matter what your camera resolution is set to.

Another way is to use shallow depth of field if your subject is in front of the LED screen; the subject will be in focus and the background LED screen will be softly blurred. Image sensors found in digital cameras have their pixels arranged in a very fine pattern; when videoing an LED display, the camera’s fine patterns will not line up with the fine pattern of the LED’s.
Why do I have to reconfigure the LED wall every time I restart the system? When changing settings in NovaStar’s NovaLCT, all software settings need to be “Saved to Hardware”. If this has not happened, the wall will return to the state of the last saved setting. This applies to every setting in the software, including: brightness, color temperature, wire flow, and calibration settings.
How do I remove a module if there are faulty pixels? Each module on an LED panel has magnets to keep them in the proper position. Use the included module removal tool. Each LED panel series varies.

ELEMENT LED panels — Verify that the module’s safety cable is detached. Carefully insert the removal tool into the top front of the module via the thin slots and then slide the tool upwards to secure. While holding onto the removal tool, place forearm parallel against the module and use a curling motion (think lifting weights in the fitness room) to pull the top of the module toward you. This separates the module and panel chassis magnets. Some force will be needed.
